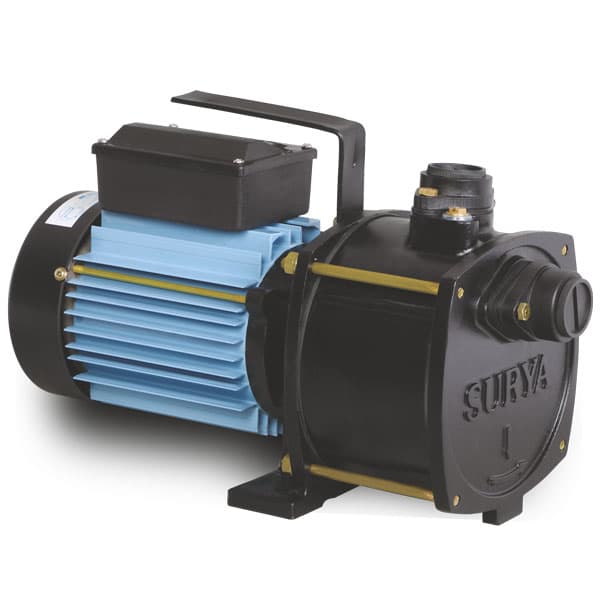

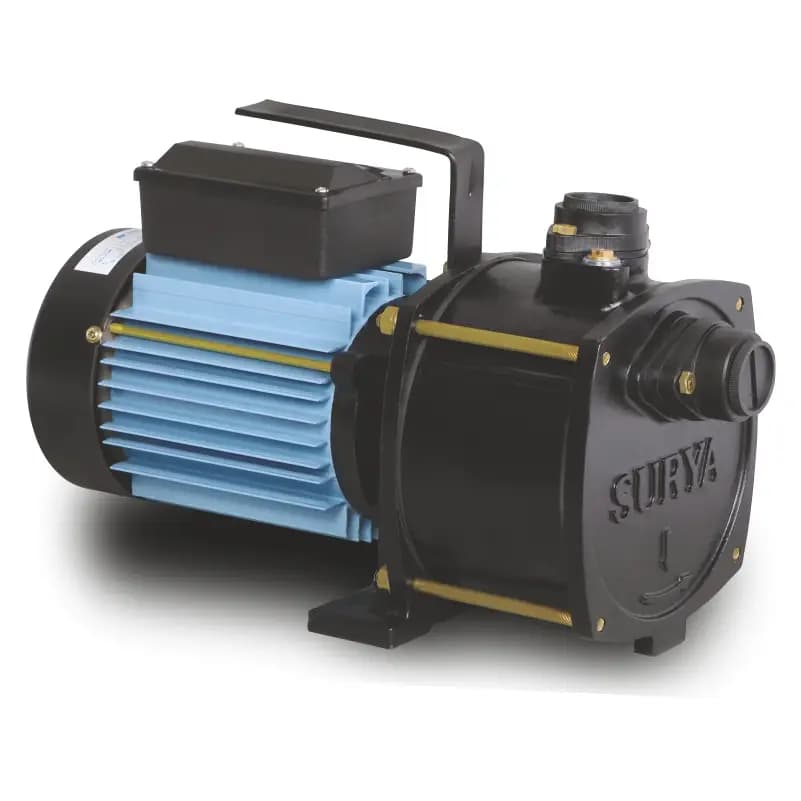

Surya Power-SW-LX
- 12+6 Months Extended Warranty
- Motor F-Class Insulation
- 100% T.O.P. Protection
- Heavy Duty Forged Brass Impeller – Extra Lifting Capacity
- 100% Copper Winding
Features:
- Heavy duty design
- Low power consumption
- Best hydraulic performance
- Thermal overload protection
- Aluminium extruded motor body
- High grade cast iron pump parts
- Wide voltage operation from 180 V to 260 V
- Cast iron impeller for longevity of pump
- Ceramic/ carbon mechanical seal for leak proof operation
- Double shielded pre lubricated ball bearing for longer life
0.37 / 0.5 (kW / HP) Performance
| Head | 6 m | 10 m | 12 m | 16 m | 20 m | 22 m | 24 m | 26 m | 28 m | 30 m | 32 m | 34 m | 35 m | 36 m | 38 m |
|---|
| Discharge | 3200 L/h | 2900 L/h | 2800 L/h | 2600 L/h | 2300 L/h | 2000 L/h | 1700 L/h | 1300 L/h | 1000 L/h | 600 L/h | - | - | - | - | - |
|---|
0.75 / 1.0 (kW / HP) Performance
| Head | 6 m | 10 m | 12 m | 16 m | 20 m | 22 m | 24 m | 26 m | 28 m | 30 m | 32 m | 34 m | 35 m | 36 m | 38 m |
|---|
| Discharge | 3400 L/h | 3300 L/h | 3200 L/h | 3100 L/h | 2950 L/h | 2800 L/h | 2400 L/h | 2150 L/h | 1850 L/h | 1500 L/h | 1200 L/h | 1000 L/h | 900 L/h | 800 L/h | 600 L/h
|
|---|
- Water supply to builder floors & apartments
- Water lifting to over head tanks
- Gardening, small field irrigations
- Water circulation & Pressure boosting
