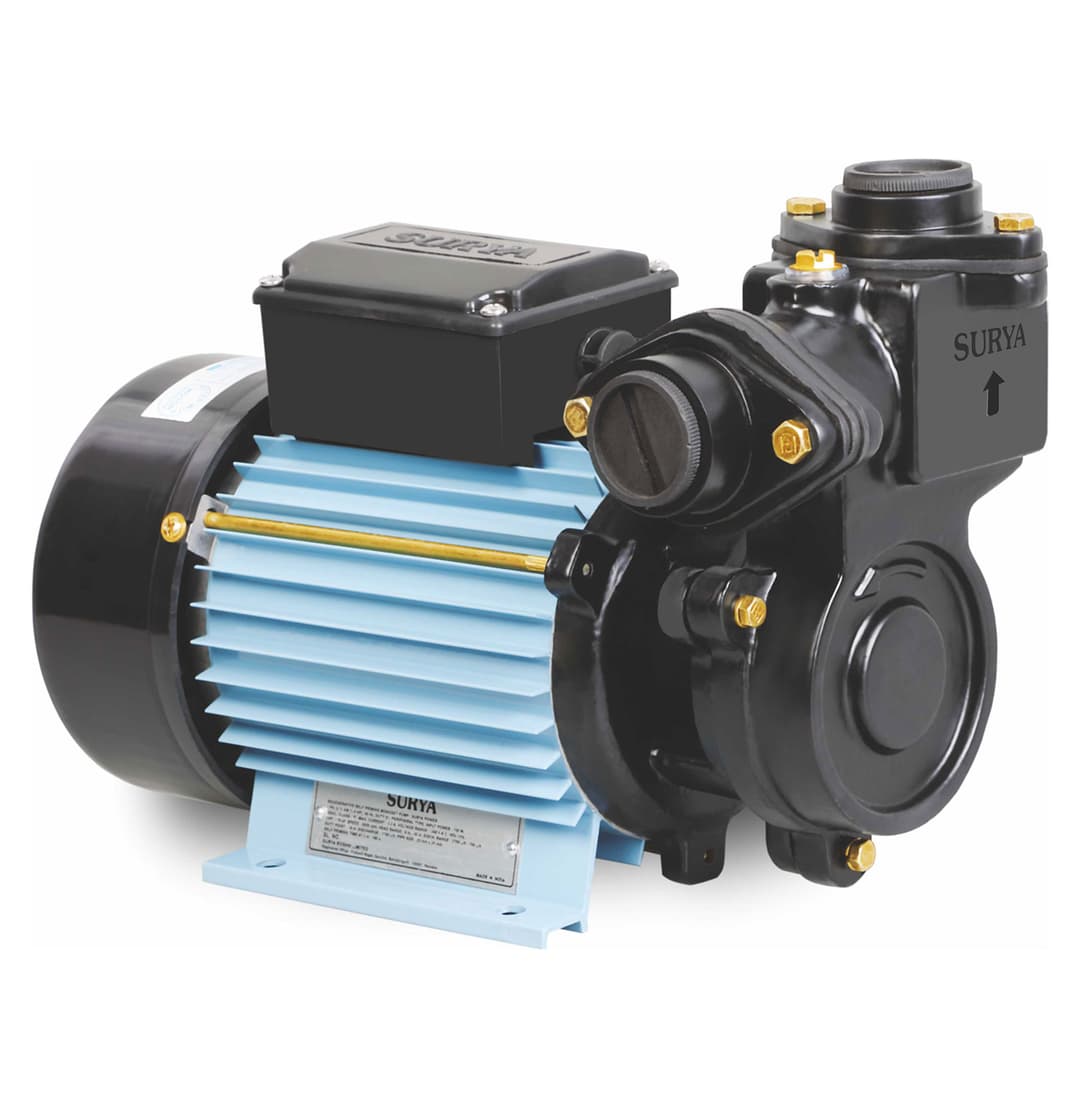

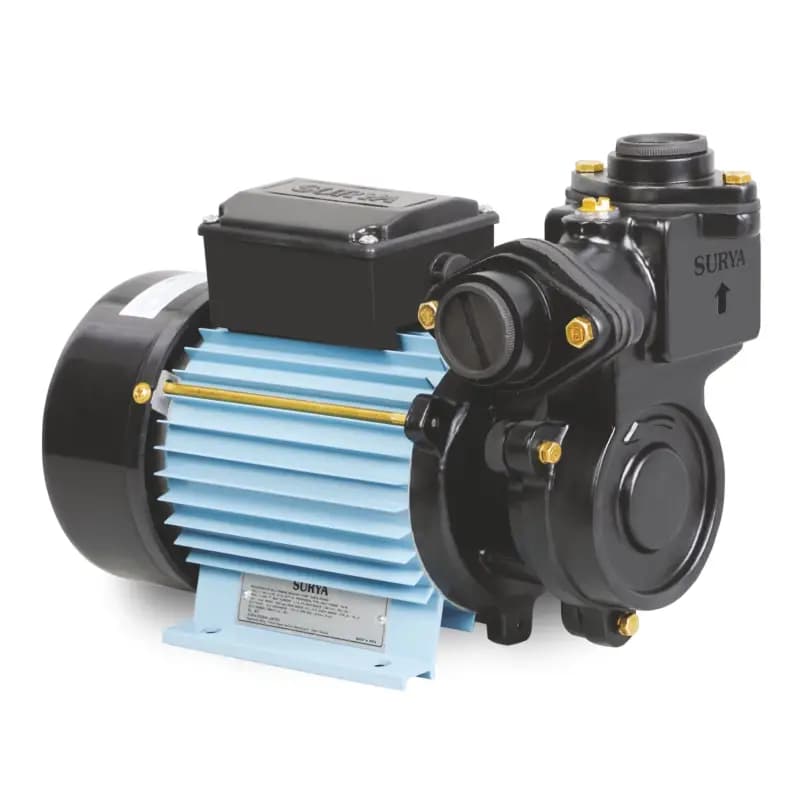

Surya Power-DX
| Model Name | Power (kW / HP) | Pipe Size (mm) |
|---|---|---|
| Surya Power-DX Self Priming MMB 0.5 HP | 0.37 / 0.5 | 25 × 25 |
| Surya Power-DX Self Priming MMB 1 HP | 0.75 / 1.0 | 25 × 25 |
12+6 Months* Extended Warranty, Motor F-Class Insulation, 100% T.O.P. Protection, 100% Copper Winding, Heavy Duty Forged Brass Impeller Extra Lifting Capacity
Features
- Heavy duty design
- Low power consumption
- Best hydraulic performance
- Thermal overload protection
- Aluminium extruded motor body
- High grade cast iron pump parts
- Wide voltage operation from 160 V to 280 V
- Forged brass impeller for longevity of pump
- Ceramic/ carbon mechanical seal for leak proof operation
- Double shielded pre lubricated ball bearing for longer life
Application
- Water supply to builder floors & apartments
- Water lifting to over head tanks
- Gardening, small field irrigations
- Water circulation & Pressure boosting
Robust Steel Shaft, Thermal Overload Protector, Brass Impeller
0.37 / 0.5 (kW / HP) Performance
| Head | 6 m | 10 m | 12 m | 16 m | 20 m | 22 m | 24 m | 26 m | 28 m | 30 m | 32 m | 34 m | 35 m | 36 m | 38 m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge | 1650 L/h | 1450 L/h | 1250 L/h | 110 L/h | 925 L/h | 750 L/h | 600 L/h | 1300 L/h | 500 L/h | 400 L/h | 300 L/h | - | - | - | - |
0.75 / 1.0 (kW / HP) Performance
| Head | 6 m | 10 m | 12 m | 16 m | 20 m | 22 m | 24 m | 26 m | 28 m | 30 m | 32 m | 34 m | 35 m | 36 m | 38 m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge | 3150 L/h | 2900 L/h | 2650 L/h | 2400 L/h | 2200 L/h | 1975 L/h | 1700 L/h | 1600 L/h | 1400 L/h | 1300 L/h | 1100 L/h | 900 L/h | 750 L/h | 600 L/h | 300 L/h |
